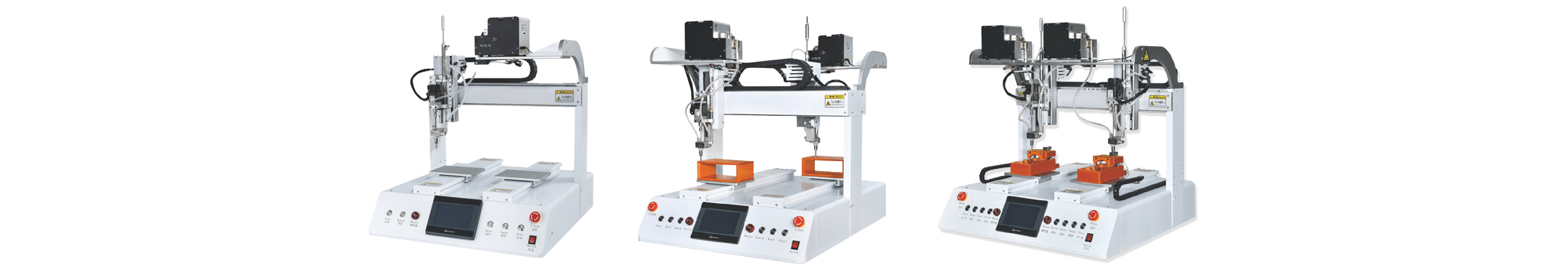

DROP TYPE MACHINE
SmarTorq Automation
Main Features
Screw is fed from the Screw Feeder to the Screwdriver nozzle by drop
Can achieve high-speed assembly compared to pick and place type
Support for loose thread / slippery screw head alarm function
Fastening torque and speed is chosen from the setting in the program
Support hand-drag adjustment to screw point adjustment
Model
Locking Screw Range
Number of Axis
Screw Size
Weight
Dimension(L*W*H)
SMM-4223-2Y
230*420*135mm
4-Axis
M1.5~M4
80kg
810*720*900mm
SMM-4222-2Z (Left/Right)
220*450*123mm/220*450*123mm
6-Axis
M1.5~M4
100kg
850*810*900mm
SMM-5023-2Z (Front/Back)
230*500*135mm/230*520*135mm
6-Axis
M1.5~M4
100kg
850*810*900mm

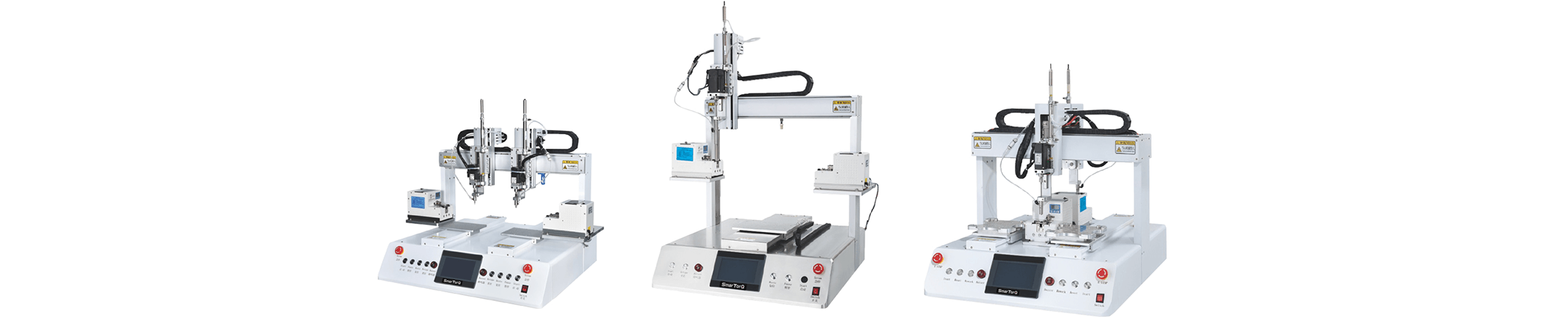

PICK & PLACE TYPE MACHINE
SmarTorq Automation
Main Features
Screw is picked up from the Screw Feeder by magnetic bit
Support for loose thread / slippery screw head alarm function
Fastening torque and speed is chosen from the setting in the program
Support hand-drag adjustment to screw point adjustment
Model
Locking Screw Range
Number of Axis
Screw Size
Weight
Dimension(L*W*H)
SMM-4542-1Z
450*420*135mm
3-Axis
M1.5~M4
80kg
810*720*900mm
SMM-4221-2Y
210*420*135mm
4-Axis
M1.5~M4
80kg
810*720*900mm
SMM-4220-2Z (Left/Right)
200*420*135mm/200*420*135mm
6-Axis
M1~M4
100kg
970*820*900mm
SMM-5021-2Z (Front/Back)
210*500*135/210*500*135mm
6-Axis
M1~M4
100kg
970*820*900mm

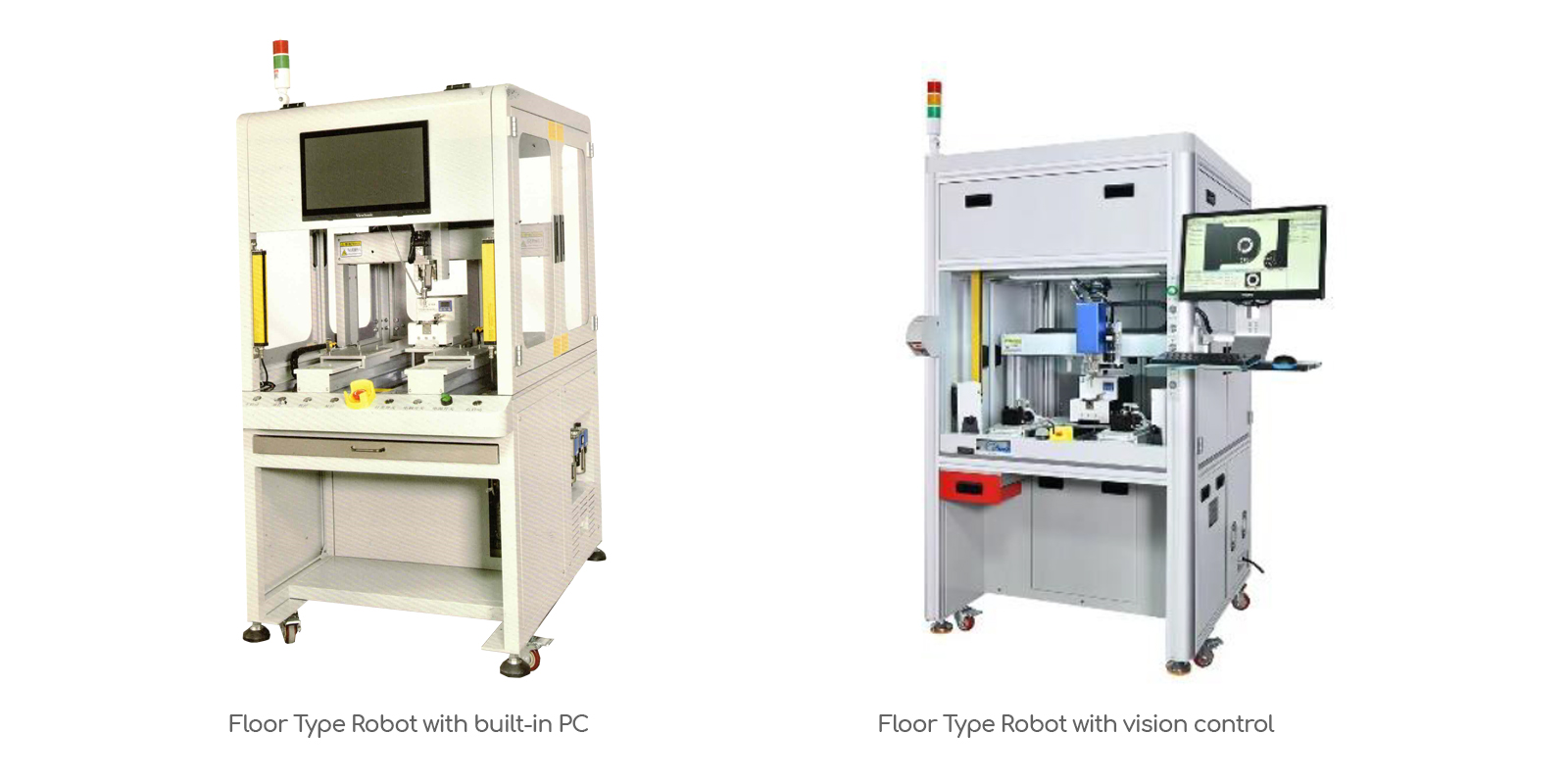

FLOOR TYPE Machine
SmarTorq Automation
Main Features
Support front-loading product and back fastening; or front-loading and fastening
Support torque value export and graph display function
Support barcode scanning & record
No need for additional tabletop, more flexible work adjustment & mobility
Model
Locking Screw Range
Number of Axis
Screwdriver
Weight
Remarks
SMM-7024-2Y-CMR
240*700*135mm
4-Axis
1 unit
120kg
with camera
SMM-7024-2Z-CMR
240*700*135mm
6-Axis
2 units
130kg
with camera
SMM-7024-2Y-PC
240*700*135mm
4-Axis
1 unit
130kg
with camera & PC
SMM-7024-2Y
240*700*135mm
4-Axis
1 unit
120kg
No camera & No PC
SMM-7024-2Y-ALU
240*700*135mm
4-Axis
1 unit
110kg
No camera & No PC
