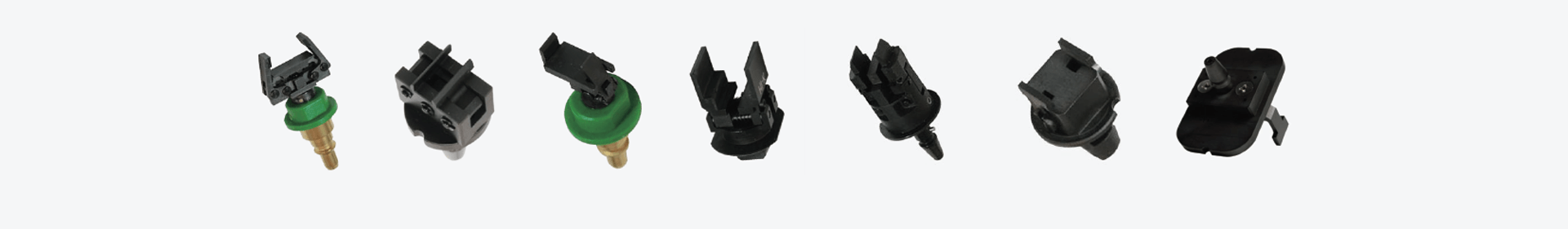

GRIPPER

Accessories

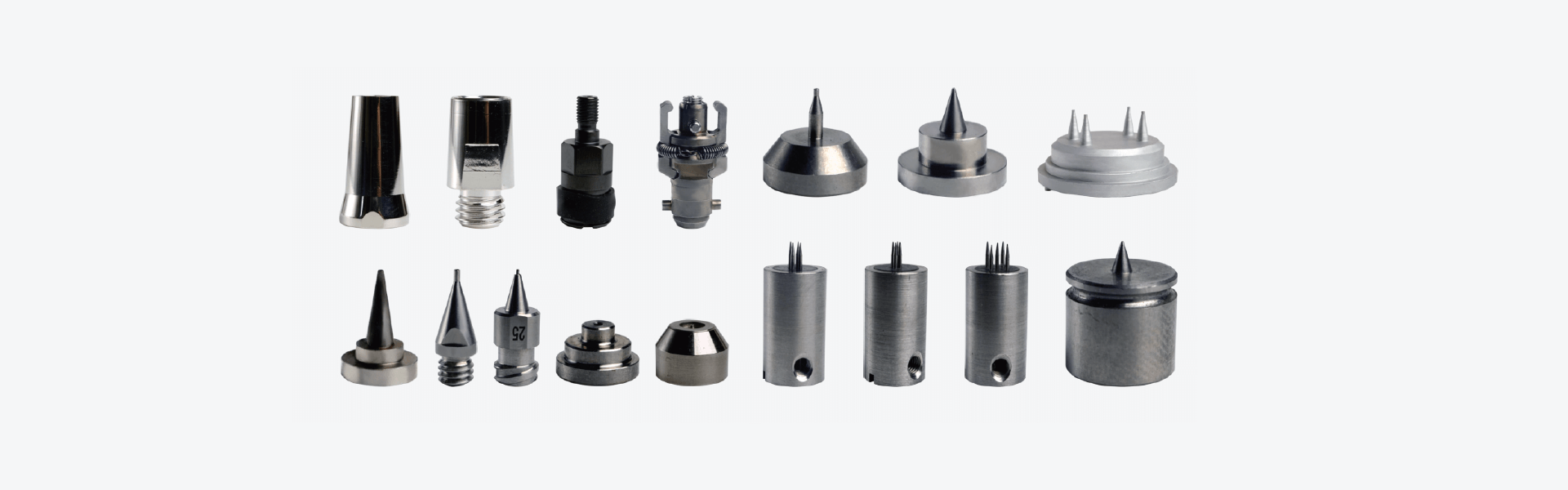

NEEDLE, HOLDER & SELECTIVE NOZZLE

Accessories

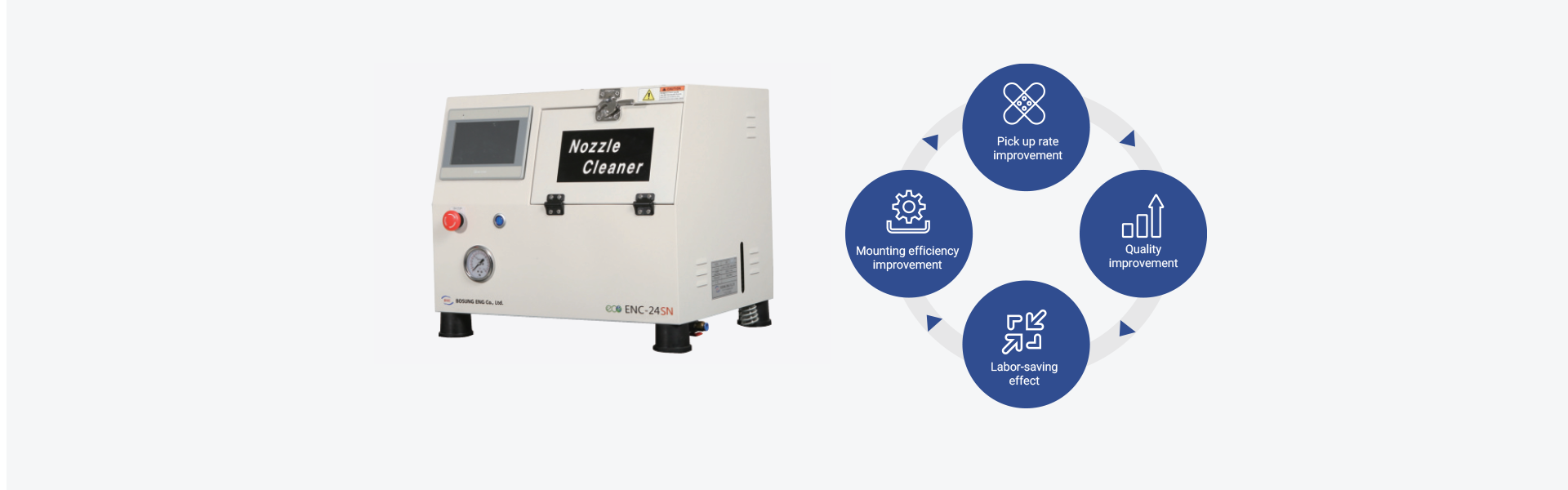

NOZZLE CLEANER

Accessories

Main Features

  • The effect of carbon reduction by using distilled water
  • Possible to clean 12/24 nozzle at the same time
  • Easy to operate with touch panel
  • Reduce the time to change the nozzle by using the nozzle holder
Model ENC-12SN ENC-24SN
Nozzle Head Quantity 12 24
Air Type Clean Air Clean Air
Air Pressure 7 kgf/cm 7 kgf/cm
Cleaning Water Type Distilled water Distilled water
Cleaning water fluid amount 4 litre 4 litre
Power Supply voltage DC100-250V DC100-250V
Product Dimension (L*W*H) 550* 420* 480 550* 420* 480
Weight 45 kg 45 kg

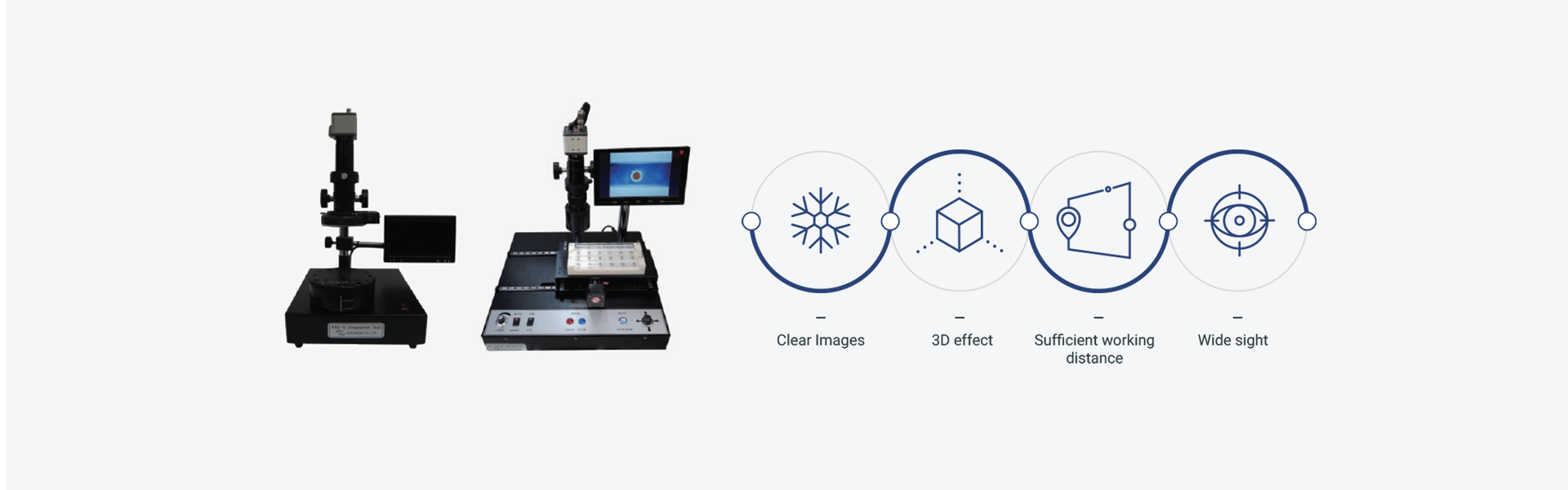

NOZZLE INSPECTOR

Accessories

Main Features

  • Microscopic single zoom head, provides clear images
  • Sufficient working distance and sight with unique light focus and excellent depth of field technology
  • Comes with high-definition color CCD camera and LCD monitor
Model ENI-12AP ENI-124AMP
CCD Camera 1/3" SONY 1/3" SONY
Monitor 9" 9"
Optical Magnification 0.7X ~ 4.5X 0.7X ~ 4.5X
Working Distance 110 mm 110 mm
Maximum Magnification Max 130 times Max 130 times
Voltage 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz
Product Dimension (L*W*H) 320* 320* 630 450* 400* 600
Weight 14 kg 19 kg
