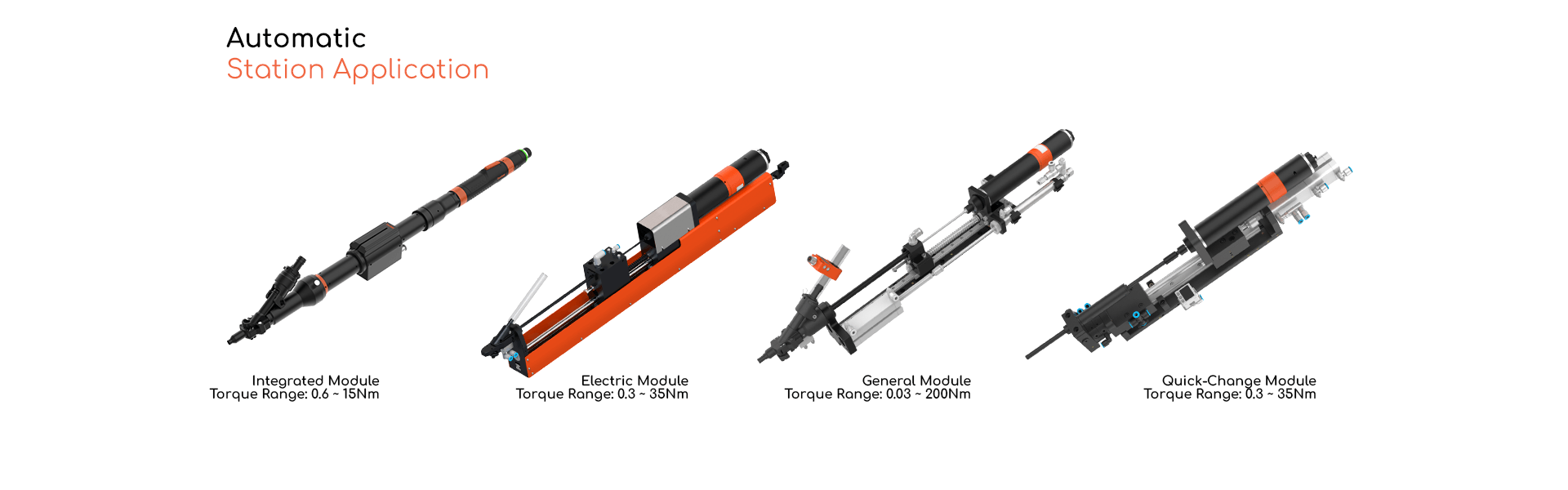

AUTO FEEDING SYSTEM (AFS)

Screw Feeding & Tightening System

Main Features

  • Torque range 0.6 ~ 30Nm

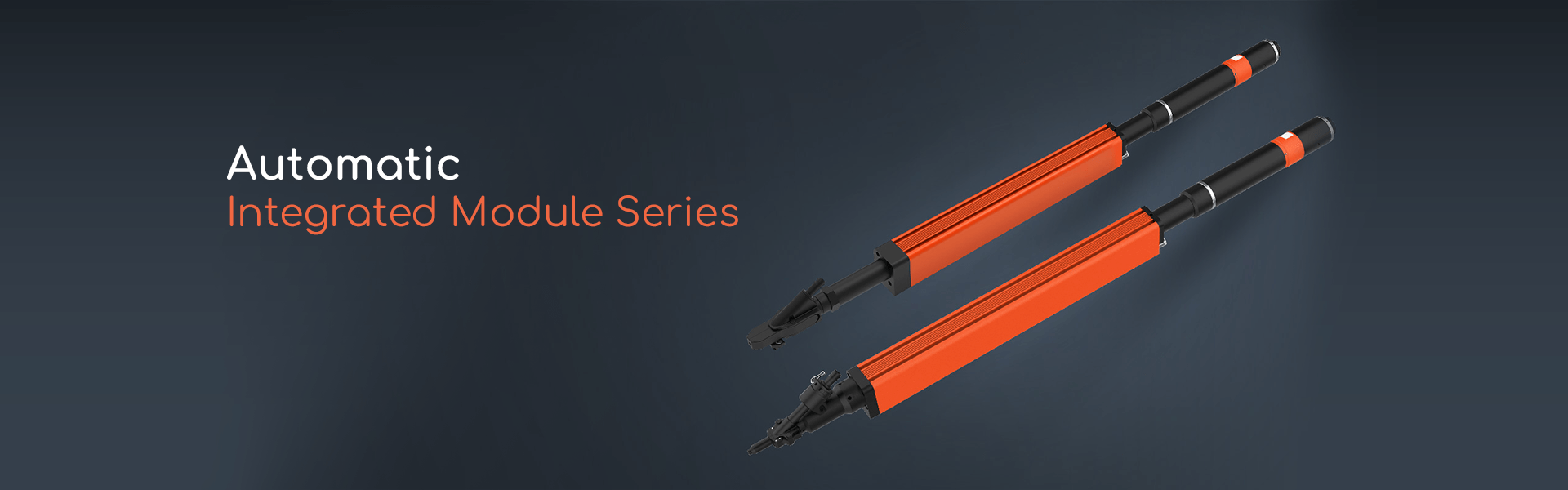

  • The Integrated Tightening Module Series can be used in conjunction with a three-axis module, collaborative robot, or industrial robot to achieve fully automatic screw tightening.

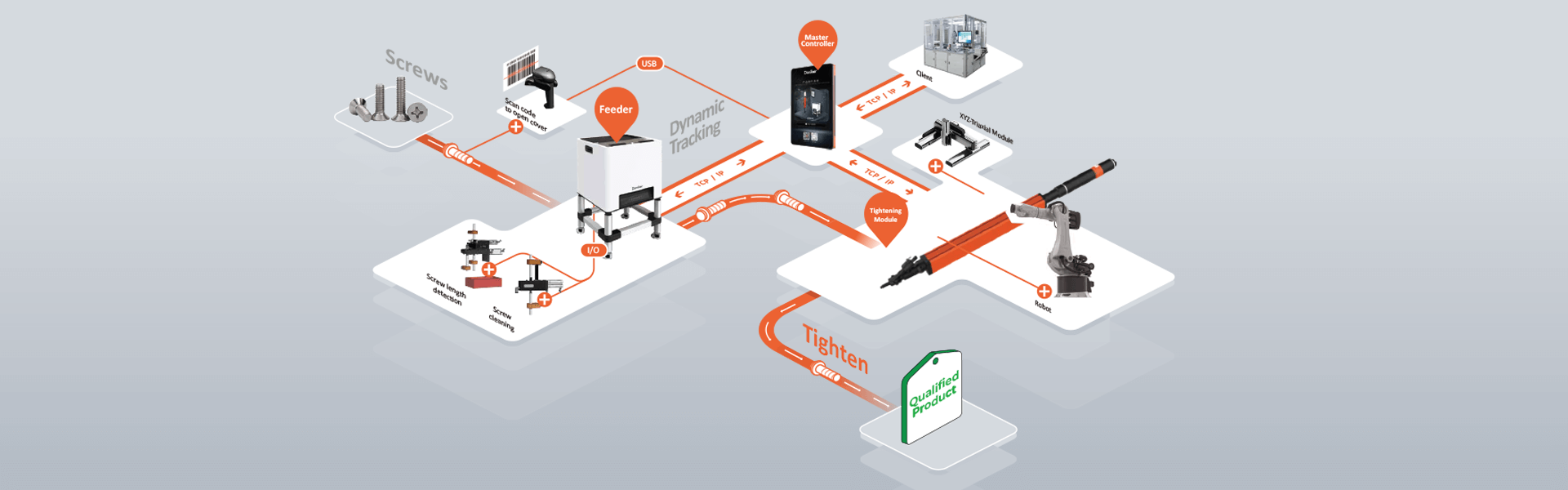

  • This is done by automatically blowing the screws to the gun head or receiving table through the nail feeding machine.
  • Structure is compact, the gas-electricity layout is simple and the space is saved
  • Applicable to complex working conditions
  • More lightweight(reduced by 20-30%), applicable to 5Kg robot
  • With patented design and special structure, the screw suction tube can stop at the screw pick position for screw suction
  • The clamping block opens actively and has no impact abrasion with teh screw suction pipe, so the service life is prolonged
  • The replacement of the bit is convenient, the bit can be quickly replaced when the cylinder stretched out.
  • Through the pressure regulating valve on the air circuit, the pressure can be flexibly adjusted when tightening
  • Product safety, suitable for man-machine cooperation

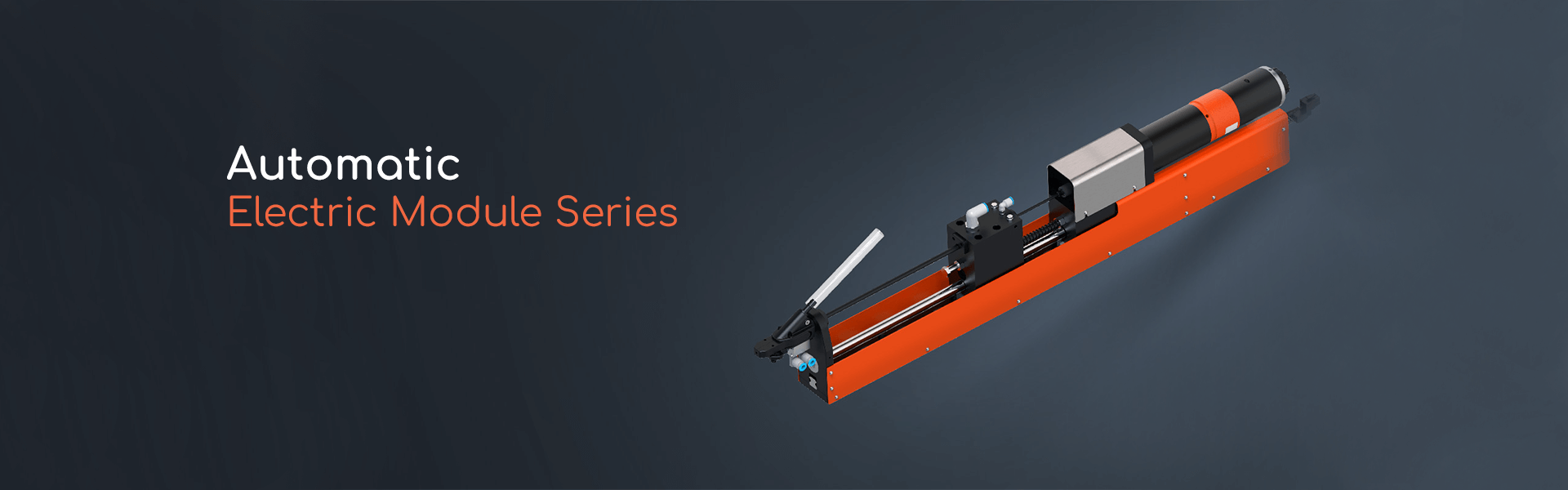

Main Features

  • Torque range 0.3 ~ 35Nm
  • The Electric Tightening Module uses electric drive to replace the traditional integrated tightening tool, enabling the automatic tightening process of screws
  • It can monitor all elements of the tightening process and is highly compatible with various special working conditions and product height differences
  • PLC is used for information interaction to realize all-factor interactive control and real-time monitoring (speed, displacement, torque, pressure and time)
  • Combined with with intelligent screw driver, real-time monitoring of abnormal tightening conditions such as floating screws, sliding teeth, missing and so on can avoid the outflow of defective products
  • Accurate control of downforce: no impact during tightening to avoid screw thread damage
  • Flexible control of avoidance height; the screw suction tube can stop at any position within the travel range, with a wide range of compatibility
  • Servo electric drive control, compared with the traditional module, the screw feeding speed is increased 20%
  • The pneumatic components are reduced, the air consumption is reduced by 24%, and the normal vacuum module only needs the vacuum air and brake air provided by the customer, which contributes to the energy saving and emission reduction of the factory

Main Features

  • Torque range 0.3 ~ 200Nm

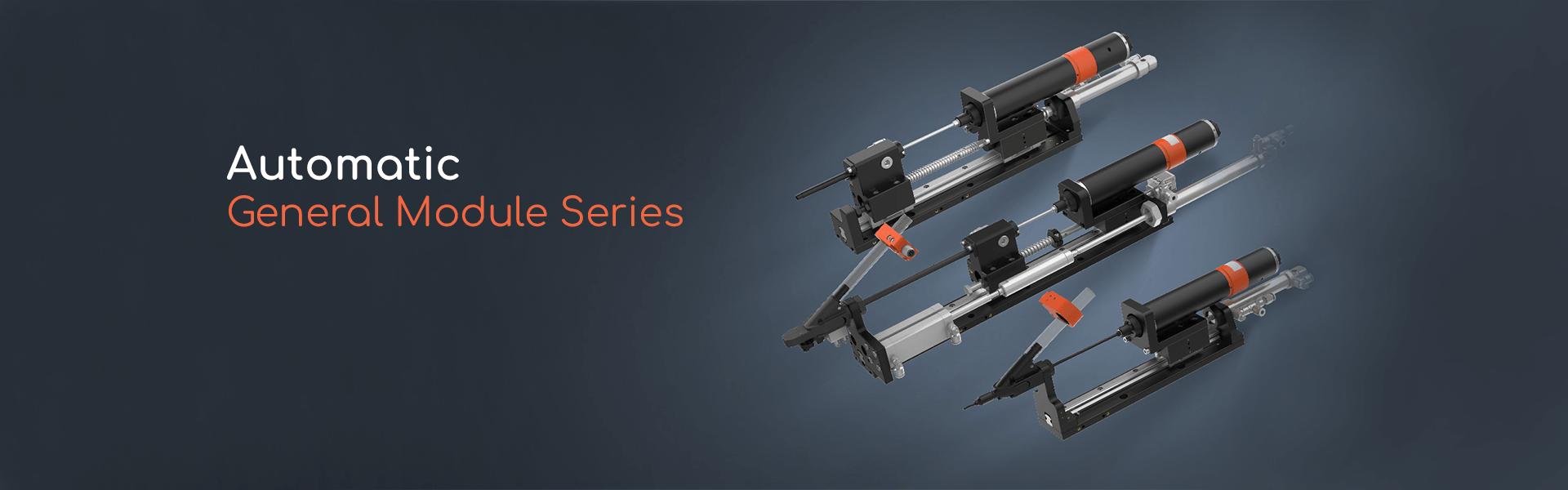

  • Single & multi spindle automatic screwdrivers completely automate the screw driving process along an manufacturing assembly line when mounted to third party robotic arms and positioning systems

Main Features

  • Torque range 0.3 ~ 35Nm

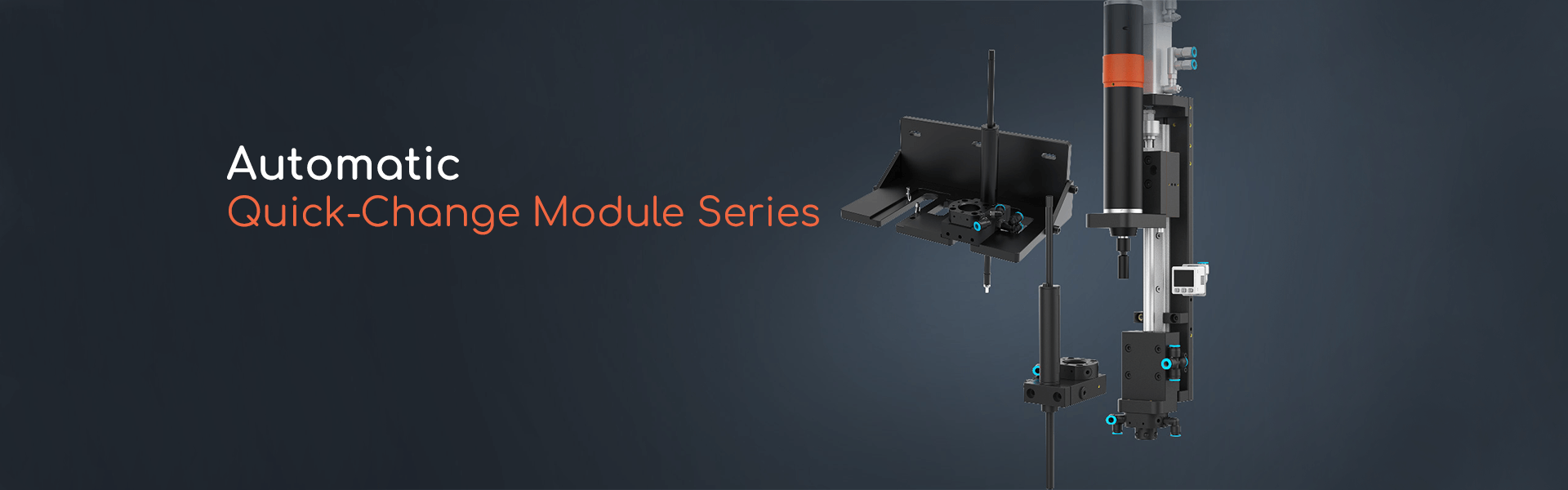

  • Different screws can be tightened by matching them with various tightening female heads, making it suitable for applications involving multiple types of screws or continuous production lines that require frequent type changes
  • It can be integrated with Intelligent Screw Drivers, incorporated into robots, three-axis systems, and other mobile mechanisms, and used in conjunction with receiving tables
  • Strong compatibility; one machine for multiple purposes(common screws are compatible with hexagon head)
  • Quick change type can reduce the cost of screw driver part, wearing parts can be replaced independently
  • Detect the negative pressure of the suction screw to prevent the screw from falling
  • The replacement structure is stable
  • The process is controllable
  • The automatic application is controlled by PLC to change the type, which is efficient and error-proof

Main Features

  • Torque range 0.6 ~ 12Nm

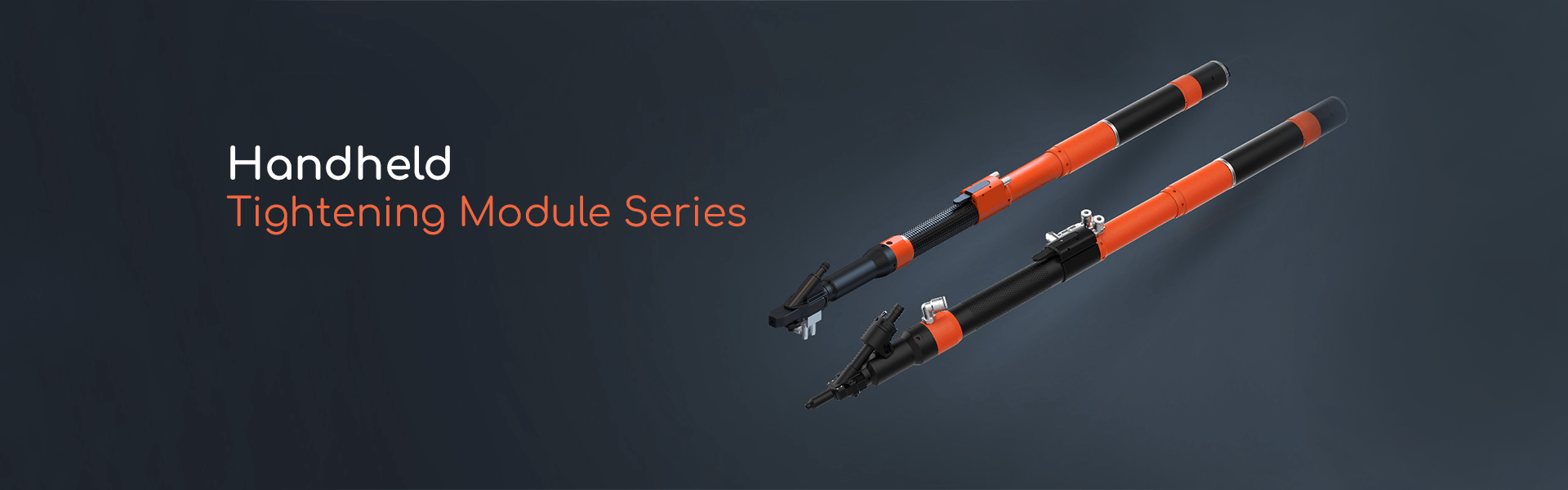

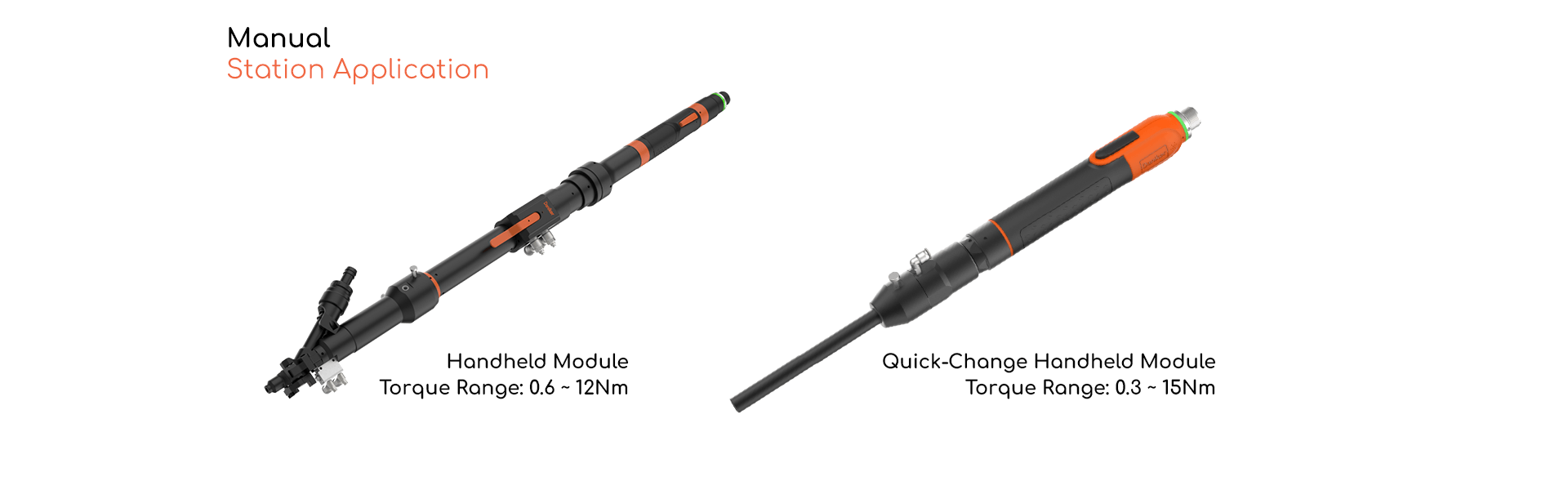

  • The integrated handheld tightening module can be used with torque arms to achieve automatic screw tightening at manual operation stations, eliminating the need for operators to handle screws
  • When combined with a smart electric torque screwdriver, it allows for tracking the number of screws and tightening results
  • The structure is compact, the gas-electricity layout is simple and the structure is convinient to be installed and fixed with the force arm
  • The nozzle replacement is more convinient and the nozzle sleeve can be replaced after being disassembled
  • Automatic screw blowing, no need for manual screw removal
  • Comfortable grip
  • The tightening pressure is adjusted in the form of air pressure, and the reaction force is small
  • The suction screw is stableand can tightened to avoid interference
  • Combines with Intelligent Screwdriver and force arm, it can realize the control of tighening quantity, tightening sequence and tightening quality in the production process.

Main Features

  • Torque range 0.3 ~ 15Nm

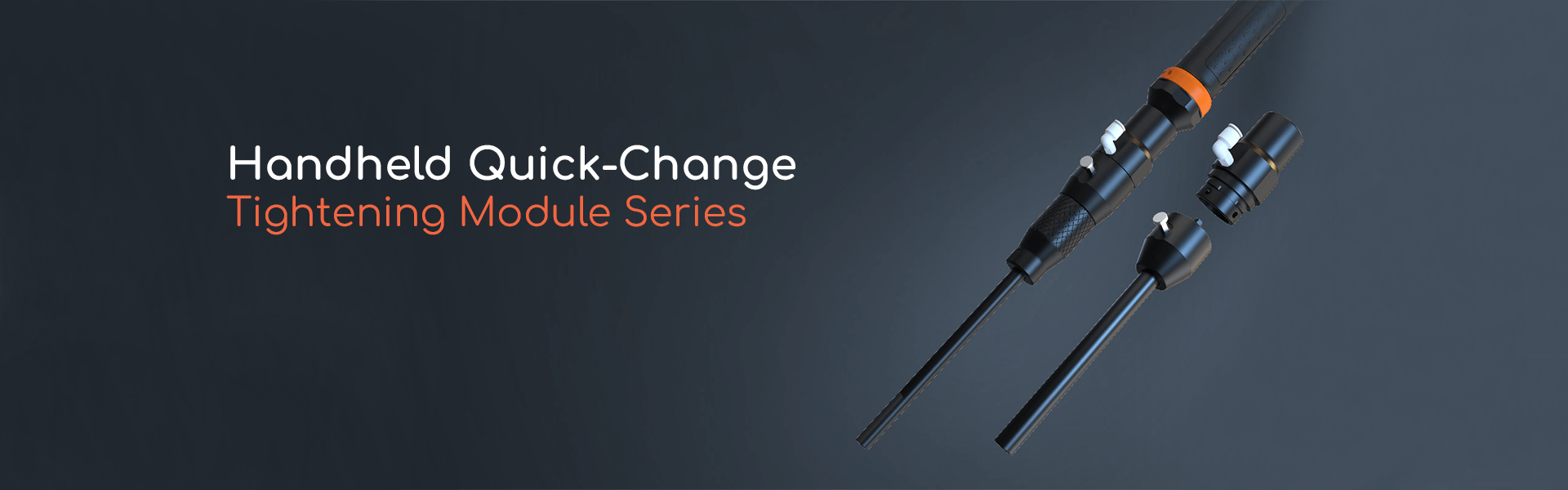

  • The quick-change tightening module can be matched with different tightening female heads to realize the tightening of different screws
  • It is suitable for products with many types of screws or in line production applications that require type change
  • Strong compatibility; one machine for multiple purposes(common screws are compatible with hexagon head)
  • Quick change type can reduce the cost of screw driver part, wearing parts can be replaced independently
  • Detect the negative pressure of the suction screw to prevent the screw from falling
  • The replacement structure is stable
  • The process is controllable
  • The automatic application is controlled by PLC to change the type, which is efficient and error-proof
