Reflow Checker

UI-301AXV

https://www.youtube.com/watch?v=hMqM3RxDPeM

Product Features

  • Up to 16 channels can be measured *V means vibratrion (6, 6V, 8V, 9V, 10V, 12V, 16)
  • Download measurement information over the wire
  • Analysis of measurement information
  • Predictive function based on measurement results
  • Ability to compare multiple measures
  • Determination function applying process management standards
  • Data Excel conversion (CSV file)
  • Battery low power monitoring function
  • Internal circuit protection function
  • Support Korean/ English/ Japanese in program
Model UI-301AXV
Temperature Measurement K-Type Thermocouple ± 1.5 °C Accuracy
Sampling 0.3 sec, 0.6 sec, 1.2 sec, 2.4 sec. (V series fixed at 0.3sec)
Measuring Time 10min, 20 min, 40 min, 80 min
Internal Storage UI-301A 5 times/ UI-301A6V 2 times
Battery Rechargeable 6V/ Rechargeable 3.6V
Usage time Continuos 10 hours (room temperature)
Use Temp. / Preservation Temp. UI-301A 5~300 °C / 0 ~ 40 °C
UI-301AxV 5 ~ 400 °C
Dimension (mm: Max / Min) 284*260*23 / 284*99*23


Wave Checker

UI-351A

https://www.youtube.com/watch?v=hMqM3RxDPeM

Product Features

  • Up to 6 channel can be measured
  • Dip time by depth (Dwell time)
  • Preheat temperature measurement
  • Solder temperature measurement
  • Conveyor speed measurement
  • Can measure value on LCD screen
  • Determination function applying process management standards
  • Data Excel conversion (CSV)
  • Battery Low monitoring function
  • Internal circuit protection function
  • Jig guard (optional)
  • Support Korean/ English/ Japanese in program
  • Body lead overflow protection guard (optional)
Model UI-351A
Temperature measurement K-Type thermocouple ± 1.5 °C Accuracy
Sampling 0.3 sec
Measuring time 10 min
Internal storage UI-351A 5 times/ UI-351A6 2 times
Battery Rechargeable 6V/ Rechargeable 3.6V
Usage time Continuos 10 hours (room temperature)
Use Temp. / Preservation Temp. UI-351A 5~300 °C / 0 ~ 40 °C
UI-315A6 5 ~ 400 °C/ 0 ~ 40 °C
Dimension (mm) 342 *220 *8


Description Sensor Description Sensor
1st Dip Time Left, Middle, Right 1st, 2nd 0.9mm Dip Left, Right
2nd Dip Time Left, Middle, Right 1st, 2nd 0.6mm Dip Left, Right
1st, 2nd 1.8mm Dip Left, Right Preheat PCB Top/Bottom
1st, 2nd 1.5mm Dip Left, Right PCB peak temperature PCB Top/Bottom
1st, 2nd 1.2mm Dip Left, Right Solder, C/V Solder Temp, Conveyor speed


Selective Checker

UI-354

Product Features

  • Up to 6 channels can be measured
  • Dip time measurement at different depths possible
  • Soldering/ Preheat temperature
  • Side balance can be measured
  • Can record up to 5 times of nozzle movement
  • Conveyor speed (Nozzle moving speed) measurement
  • PC based profile
  • Analysis of measurement information
  • Measuremnt data can be saved once
  • Data Excel conversion (CSV file)
  • Support Korean/ English/ Japanese in program
Description Content Description Content
Temperature measurement K-type thermocouple Accuracy ± 1.5 °C
Sampling/ Measuring time 0.3 sec./ 20 min. Internal storage 1 time
Battery Rechargeable 6V Dip time Left, Right, by depth
Communication method Rs232-3.5ST / USB mini 5pin Usage time Continuous 10 hours (Room temperature)
Use Temp/ Preservation Temp. 5~400°C / 0~40°C Dimension (mm) 342.5 *220 *42


Description Sensor Description Sensor
1st~5th +0.1mm Dip Left, Right Preheat temperature PCB Top/ Bottom
1st~5th +0.5mm Dip Left, Right PCB peak temperature PCB Top/ Bottom
1st~5th 0.0mm Dip Left, Right Solder Solder temperature
1st~5th +0.5mm Dip Left, Right CV Conveyor speed
1st~5th +1.0mm Dip Left, Right - -

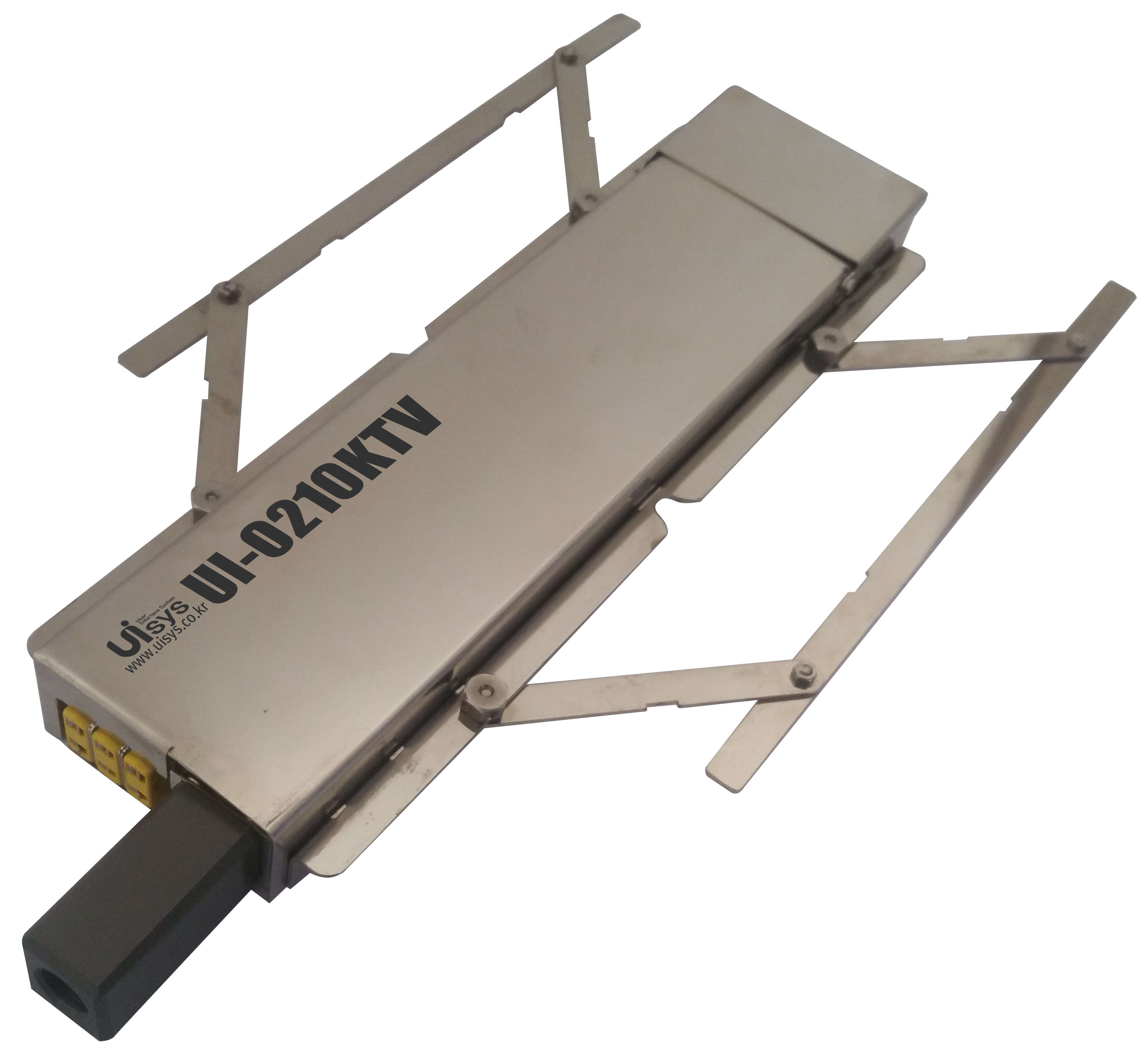

O2 Analyzer

UI-0210KTV

Product Features

  • Measurement of oxygen concentration (nitrogen atmosphere) under the same conditions as the production product
  • Up to 11 channels of temperature can be measured(default 3 channels)
  • Vibration-split 3-axis(X,Y,Z) measurement
  • Download measurement information over the wire
  • Analysis of measurement information
  • Compare data
  • Determination function applying process management standards
  • Data Excel conversion (CSV file)
  • Battery low power monitoring function
  • Internal circuit protection function
  • Support Korean/ English/ Japanese in program
Description Sensor Measuring Range Accuracy
Measurement of oxygen concentration Zirconia 10ppm ~ 1,0000ppm
50ppm ~ 10,000ppm		 ±30ppm (±3%)
±110ppm (±3%)


UI-O21KTV Description
Temperature measurement K-type thermocouple ± 1.5 °C
Sampling 0.3 seconds
Measuring Time 10 minutes
Internal Storage 2 times
Battery Rechargeable 8.4V
Usage Time Continuous 30 minutes (Room temperature)
Use Temp. /Preservation Temp. 5 ~ 400 °C / 0 ~ 40 °C
Dimension (mm) 330x230x30 / 330x120x30


In Line Camera

UI-HICAM-3


Product Features

  • Shoot the inside by the camera
  • Up to 3 channels of temperature can be measured
  • Soldering analysis through video
  • Battery low power monitoring function
  • Date Excel conversion (CSV file)
  • Shoot the melting process using a special jig
  • Vibration-split 3-axis(X,Y,Z) measurement
  • Determination function applying process management standards
  • Internal circuit protection
  • Support Korean/ English/ Japanese in program
UI-HICAM-3 Description
Temperature measurement K-type thermocouple ± 1.5 °C
Sampling 0.3 seconds
Measuring Time 10 minutes
Internal Storage Temp. & Vibration: 2 times/ Video: Depends on SD card capacity
Battery Rechargeable 12.6V
Usage Time Continuous 1 hour (Room temperature)
Video Measurment Information HD (1280 x 760), about 1 million pixel
Video storage method SD card [class 10]
Use Temp. /Preservation Temp. 5 ~ 400 °C / 0 ~ 40 °C
Dimension (mm) 297x283x35 / 297x120x35

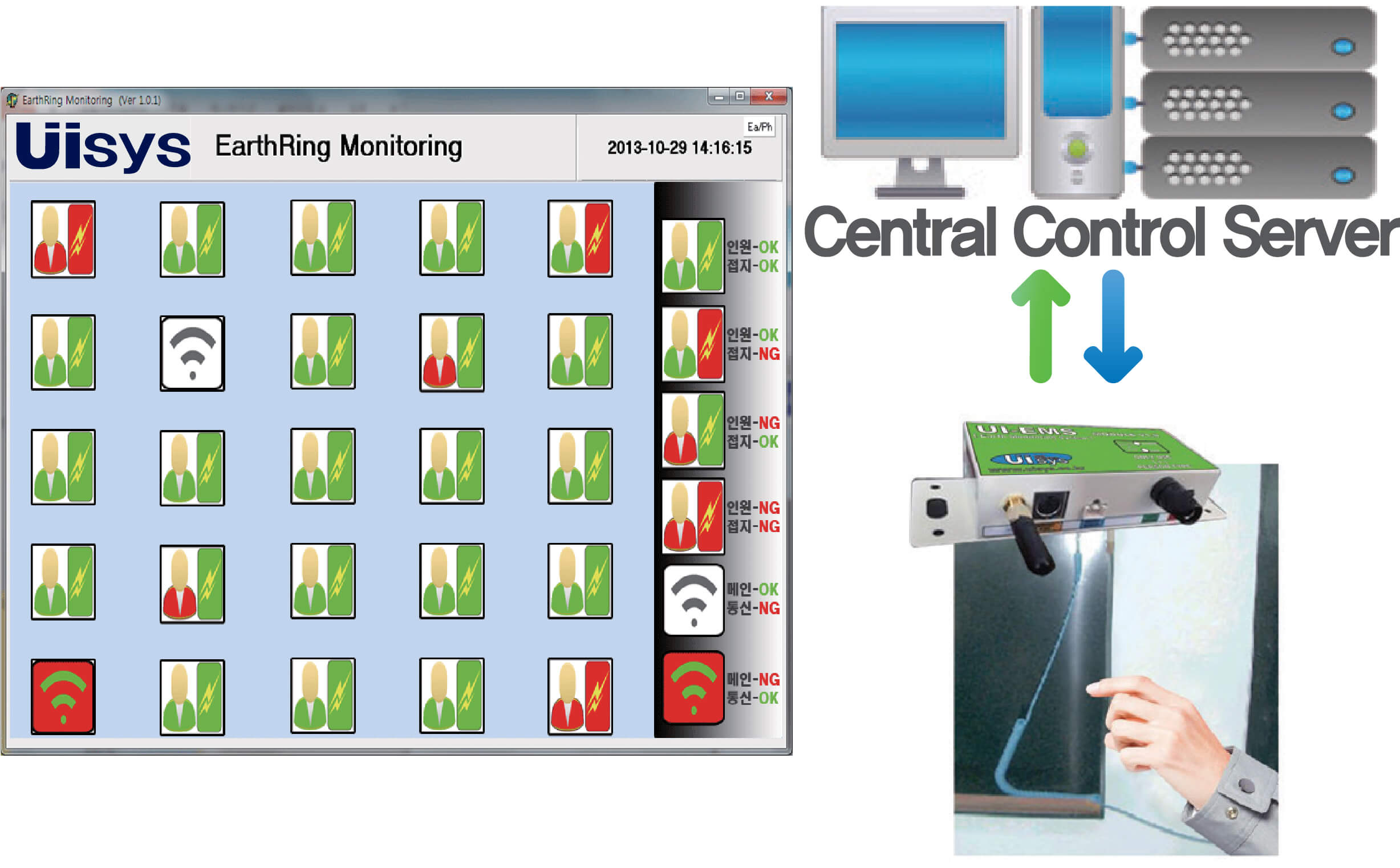

Earth-Ring Monitoring System (EMS)

UISYS



UISYS UI-EMS

Product Features

  • Manage grounding status of worker
  • Visualization of whether a worker is at a given position
  • Live Monitoring on ESD at the allocated station(OK/NG)
  • To monitor operator is ESD proof
  • Available in wired/ wireless type
  • Data log is retrievable from EMS software
  • Central Control Server
UI-EMS Minimum requirements (Common to UI-EMS and UI-EMS-L
OS Window XP, 7, 8, 10, 11
Processor/ Memory Over Pentium 4/ Over 4GB
HDD/ Installation mediumm Over 128GB/ USB memory
Communication method Zigbee
VGA/Connect 1024x768, Over 16bit/ USB
