SMART TORQUE REACTION ARM
DANIKOR
- Max vertical torque: 150Nm
- Max horizontal torque: 100Nm
- Max load: 14kg
- Vertical Distance: 400~500mm
- Horizontal Distance: 300~400mm
- Max working radius: 915mm
- Max height: 735mm
- Suitable for work benches or stations with small space
- Simple and light structure and easy to use
- 1 digital angle sensor
- 1 displacement sensor
- conversion module as standard, analog signal converted into RS485 to accurately locate the tightening position
- Max vertical torque: 150Nm
- Max horizontal torque: 100Nm
- Max load: 14kg
- Vertical Distance: 400~500mm
- Max working radius: 830mm
- Max height: 670mm
- Suitable for work benches or stations with small space
- Simple and light structure and easy to use
- 2 digital angle sensor
- conversion module as standard, analog signal converted into RS485 to accurately locate the tightening position
- Max vertical torque: 200Nm
- Max Telescopic Length: 872mm
- Min Telescopic Length: 1000mm
- Extension stroke distance: 540~1057mm
- Telescopic structure, easy to use
- Wider work scope
- Carbon material, lighter, move smoothly, strong torque resistance
- 1 digital angle sensor
- 1 pull cord encoder
- Max torque: 100Nm
- Max Load: 8 kg
- Max folding arm: 500mm
- Max reach radius: 1212mm
- Compact structure & flexible configuration
- Made of carbon fiber, the arm force is lighter to use, the cylinder is balanced
- The front end can cover it’s own clamp and support customization.

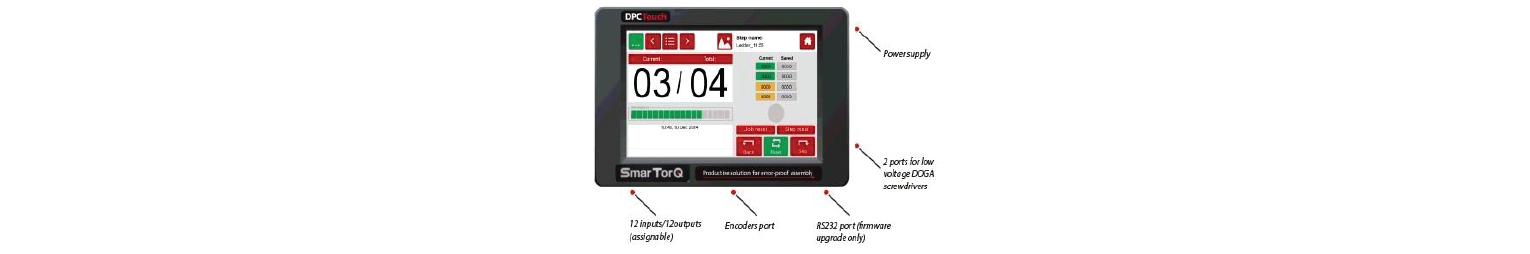

Positioning Controller
DANIKOR
- Coordinate with Danikor positioning arm to for an orderly tightening and avoid human error
- Permission management, the operator can run the display interface operation, higher authority can set parameters and system configuration
- Can be quickly positioned and set, has the characteristics of high precision, multiple channels, rapid response and the like, and is convenient and flexible to operate
- Can be matched with handheld screwdrivers and other supporting related applications
- Support PLC communication and call tightening task
- Matches the graphical task management capabilities of the N1 transducer screwdriver controller.
